Mugen MRX5 1/8 scale ON ROAD

Price:	750.00€ 550.00€
Availability:	In Stock
Model:	H2001
Manufacturer:	Mugen Seiki
Average Rating:	Not Rated

Click to enlarge

Description Additional Images (2) Reviews (0)

Call us or email us for best Prise and Deal

We offer to all our customers, FREE of CHARGE assembling and assistance for setting the car , for the most competative results. Local competitions results prove this.!!!!!!!!!

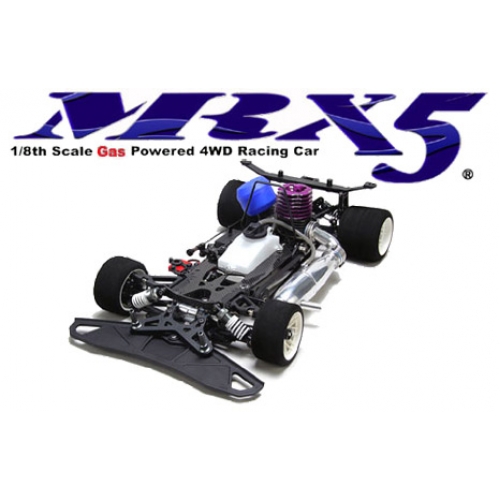

H2001 MRX5 Car Kit

<Technical Data>

+ Length----------------441.6mm

+ Width-----------------262mm

+ Wheel Base----------299mm

+ Tread (F/R)-----------216mm/202mm

+ F. Caster Angle--------8.5°～15.5° Adjustable

+ Gear Ratio-------------1st. 7.35:1/2nd. 5.52:1

+ Weight------------------~2,500g

　 + MRX5 Kit photos

　 + Parts List 1.26MB

　+ Setting Sheet (US), Setting Sheet (EU)

　+ Instruction Manual 20.4MB *revised 10.29.10

　Other necessary equipment:

　2ch Propo and 2 servo/Connecting Cable/Receiver Battery/21 Class

　Rear Exhaust Engine (only chassis kit)/Muffler/Manifold/Manifold Spring

　Tire&Wheel/Air Filter/Engine Starter/Body paint tools/Fuel

<Technical information>

+ Aluminum front/rear bulkhead

+ 90% of suspension parts are similar both right and
left side

+ Special radio tray module for both lay down
servos and receiver including a receiver box

+ New system for faster belt change

+ New fuel tank mounted from upper side

+ New front upright system to change easy the king
pin angle by optional parts

+ Longer front lower arms

+ φ8mm hollow 2 speed shaft

+ Aluminum middle shaft

+ New rear brake system

+ Fast change for roll center

+ Fast change steering Ackerman

+ New chassis flex system and stiffener

+ New front bumper

+ Adjustable weight balance

Interview with Robert Pietsch and pictures!

Robert Pietsch is very satisfied with the testing of the new Mugen MRX5

(28.05.2010) The new Mugen MRX5 is straining at the leash. Successful testing in both Europe and Japan has been completed on the development of the MRX5 and Mugen Seiki Japan has given the go-ahead to go into full production effective immediately! Robert Pietsch, Mugen factory driver and chief designer of the MRX5 was more than satisfied with the in intensive test program. His final conclusion: The new MRX5 offers very high traction and lots of steering. The car is really easy to drive and above all is faster than its predecessor!

MSE: Robert, where have to done your testing?
Robert Pietsch: Shortly after I received the first prototype of the MRX5 I completed one day of testing on my home track at Rosenheim, Germany. Afterwards I traveled to Italy to continue the test program under perfect conditions at Fiorano for two more days

MSE: How does such a test program of a new car like the MRX5 proceed?
Pietsch: First I started with the MRX4X to get lap times as a reference. Then I did a shake down run with the MRX5 to check whether the car was trimmed out and working properly. After the initial run I made some changes to the car and immediately I was faster in comparison to the MRX4X. I was very happy with this result. My testing in Fiorano was proceeding very well. Step by step I changed the setting of the MRX5: roll bars, spring, roll centre and other usual adjustments. I work systematically though all the steps in my program for testing and I was already fast on the first day in Fiorano then I have ever been.

MSE: What is your general impression, your conclusion of testing?
Pietsch: Very satisfying, absolutely. The MRX5 worked flawlessly and reacted precisely to all the set up changes. Turning into corners is extremely good with extremely high traction. I did ongoing testing and the results where very clear all the time.

MSE: What else have you noticed?
Pietsch: Well from the very first lap I had the impression that the MRX5 offer better acceleration. This have be verified in back to back tests between the MRX4X and the MRX5 using the same engine and gear ratios. Acceleration and the top speed of the MRX5 are definitely better. Everything runs very free and smooth.

MSE: Which handling characteristics will the racer enjoy the most from the MRX5?
Pietsch: I am very convinced that the racers will have great accomplishments with the MRX5. the rear end is very stable, there is plenty of steering, the car is very efficient which creates lots of speed thought the whole corner. The well known quality of the MRX4X has remained constant but at the end of the lap the racer will be faster with the new MRX5!

MSE: Which preferences have you focused on while designing this car?
Pietsch: The MRX5 offers many innovations. I took special care to focus on certain aspects. For example, the front and rear belt can be changed with just a little time effort. Changes to the roll centre can be done without any disassembly. Furthermore it is much more practical that the fuel tank be removed upwards and most notably the whole radio tray including the receiver box can be taken off easily by loosening only three screws. Not to forget the highly effective brake on the rear axle. All aspects of this car gain you time on maintenance.

MSE: You can be really proud about your new baby, cant you?
Pietsch: Of course I am proud… just a smidge. But first and foremost I am relieved when I received the first e-mail from Mugen Japan telling me that they have been very satisfied with their first test results as well.

MSE: Recently you won the EFRA Grand Prix at Fiorano with the MRX4X, how much MRX5 was already on that car?
Pietsch: A lot, especially the power train, the gear ratio and some other miscellaneous parts. The race was a successful test and the result tells its own tale.

MSE: How will the project proceed now?
Pietsch: Mugen Seiki will leave nothing to chance. The MRX5 project is a top priority project and the car has to meet the highest standards as well as the highest quality. Most of the parts are already in production and a few parts that have minor changes that will be finished shortly. The manual and similar things have to be completed. The wait is almost over and I can’t wait to get my first kit. I know that lots of nitro racers have waited patiently for the MRX5 and I am sure that they will not be disappointed…very sure!
