K-POWER by TTE Servo Digital Coreless DMC090 4,8 bis 6,0V, 8,8kg & 0,11sec (60°), Titan-Gears

Click to enlarge

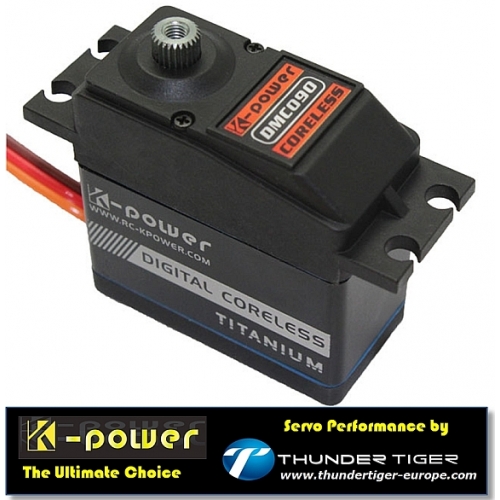

K-power DMC090 Standard Servo for R/C Car Ship Airplane Helicopter

Feature

The coreless motor has brought above average performance and ensures smoother, faster, and more efficient operation.

The Aluminum Mid case design looks good and allows for cooler and smoother operating temps.

Extremely strong titanium gears ensure long-life and durability.

Ideal as steering servo on 1:8/1:10 car, swashplate servo on 500-600 level helicopters.

Parameter

Model Type:	Digital Servo DMC090
Motor Type:	Coreless
Case material:	Aluminum Mid Case
Gear material:	Titanium
Bearing Type:	2BB
Weight:	63g / 2.2oz
Dimension:	402040mm³ / 1.60.81.6in³
Operation Voltage:	4.8-6V
Torque:	7.9kg-cm/4.8V; 8.8kg-cm/6.0V
Torque:	109oz-in/4.8V; 121oz-in/6.0V
Speed:	0.12sec/60°4.8V; 0.11sec/60°/6.0V
Pulse Width:	1000-1500
Dead band width:	2μs
Interface Type:	JR / FT / JST1.5 / JST2.0 / Other
Operating Temperature:	-20 to 60 centigrade
Splining:	25T
Wire Length:	Based on your requirement
Waterproof:	Yes
Certification:	CE & FCC
Application:	RC Airplane, Heli, Car, Boat, Robot and Retract Landing Gear
Ideal for:	500-600 class Heli CCPM/Swashplate; 1:8/1:10 Car Steering
