GMADE 1/10 GS02 BOM TR READY-TO-RUN
|
 Click to enlarge |

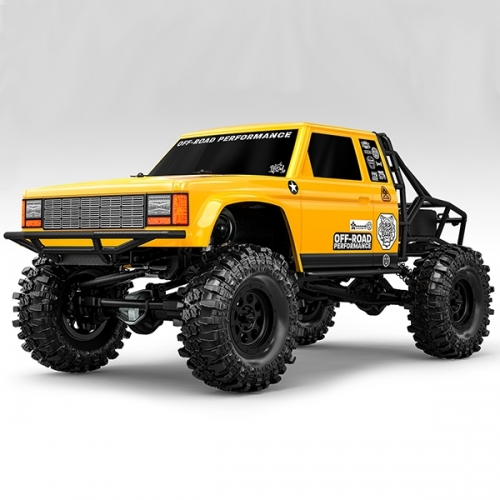

GMADE 1/10 GS02 BOM TR READY-TO-RUN
The RTR Version of Gmade's popular BOM Scale Rock Crawler. The BOM comes on Gmade’s GS02 scale off-road chassis and is ready to hit the trail right out of the box. FEATURES
GSO2 CHASSIS
FRAMESTEEL LADDER FRAME
GS02 frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting of wrapping.
C-CHANNEL SIDE RAIL
ADJUSTABLE WHEELBASE
GS02 chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 303, 313 and 324mm custom bodies.
FRONT WEIGHT BALANCE
BOM's weight balance designed to be placed on the forward of the car.
CHASSIS MOUNTED SERVO SYSTEM WITH PANHARD BAR
BOM's steering system has a steering servo on the frame just like a 1:1 real car.
BATTERY TRAY
The battery can be easily replaced and can accomodate up to 7,600mAh 2-cell Lipo batteries or 5,000mAh 3-cell Lipo batteries. DUST PROOF ELECTRONICS BOXIt protects electronic equipment such as winch controllers and BEC, which are often used for scale trucks, from foreign substances.
SKID PLATEThe skid plate protects the transmission and other critical components by the flat surface that allows the BOM to slip and ride on rocks and other obstacles easily.
DRIVE TRAIN
DRIVE LINESThe drive lines of the front and rear axles are arranged in straight-line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.
TORGUE TWIST REDUCE TRANSMISSION
The TTR transmission is designed to drive in a stable position without pulling the balalnce of power transmitted to the axle.
DUAL SLIPPER CLUTCHThe slipper pads are designed to hold the spur gears evenly to allow more precise settings.
ALL METAL INTERNAL GEARS
HARDENED CARBON STEEL UNIVERSAL JOINTS
The front and rear universal shafts of the steel joints provides smooth and stable power train.
EASY ADJUST MOTOR MOUNTYou can easily replace and install the motor pinion gear to change the gear ratio.
GA44 AXLE
GA44 axle is designed with the hardcore rock crawler in mind.
The GA44 axle housing is a durable one-piece type.
SUSPENSIONSD SCALER SHOCK ABSORBER
WHEELS 7 TYRES
MT19031.9 inch M/T Off-Road Tyre
1'9INCH NR03 WHEEL
Width: 23mm
EXTERIORBOM LEXAN BODY
The BOM body is made of high quality Lexan, which is impact resistant and highly detailed.
REAR CAGE & REAR CAGE HINGE
The three-dimensional connected rear cage structure effectively counteracts external impacts and the dustproof electronic box protects various electronic components from dust.
SPECIFICATIONS
Write Review
Your Name:
Your Review: Note: HTML is not translated! Rating: Bad Good Enter the code in the box below: There are no additional images for this product.
|  There are no related products for this product.
|
SD Scaler Shock is a Coil-over styled oil shock absorber opimised for the scale trucks.
